Container Ramp

Container Ramp

Container Ramp
**Free onsite measurement and advice.
**Price quoted including professional advice.

Please call/SMS/whatsapp
*******Free Quotation*******

017-641 2290

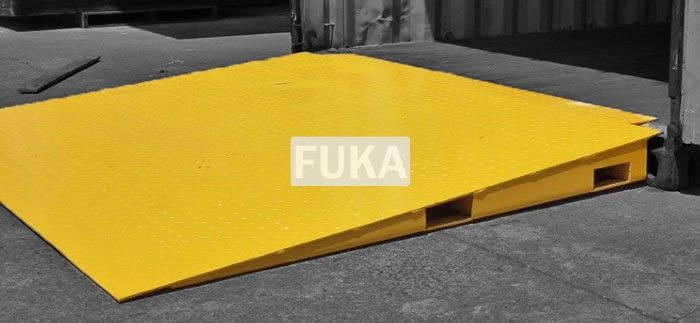

Container Ramp

Dimension  4ft x 8ft (Custom Made Available)
Model Number  CR
Capacity  8 Ton / 10 Ton
  • Container Ramp Manufacturer.
  • Suitable use for forklift loading and unloading from container.
  • Suitable use for container which is on the floor.
  • Maintenance free.
  • The most competitve price in Malaysia.
  • Warranty 5 years against manufacturing defects.



There are are floor type ramp and mobile container ramp.



In logistics, shipping, and warehousing, container ramps are essential for smooth loading and unloading of goods from shipping containers or trailers. They provide a safe and efficient bridge between ground level and the container floor, enabling forklifts, pallet jacks, or manual trolleys to move cargo in and out with ease. Two common designs dominate the industry: floor-type container ramps and mobile container ramps. While both serve the same fundamental purpose, their structure, mobility, and applications differ significantly.

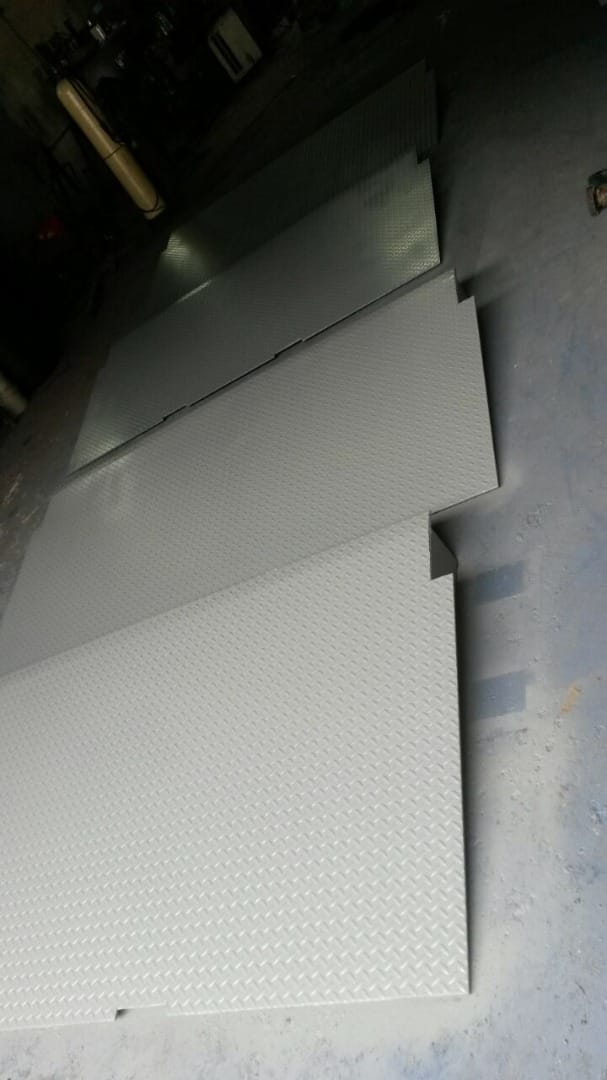

1. Floor-Type Container Ramp

Description

A floor-type container ramp (also known as a fixed container ramp) is a solid, stationary platform installed in a specific location, usually near a loading dock or a designated container handling area. It is typically made from heavy-duty steel, with a textured or anti-slip surface to ensure forklift traction.

Key Features:

  • Fixed Position: Installed in one place for continuous use.

  • Heavy-Duty Construction: Can handle very high load capacities, often above 10 tonnes.

  • Surface Material: Anti-slip steel grating or checker plate for better grip.

  • Width & Slope: Designed for easy forklift access without causing strain on equipment.

Advantages:

  • Extremely stable – no risk of shifting during use.

  • High load capacity – suitable for very heavy machinery or oversized pallets.

  • Minimal maintenance – no wheels or moving parts to service.

  • Ready for use anytime – no need to reposition.

Limitations:

  • Not portable – cannot be moved easily to different loading areas.

  • Space requirement – needs a permanent spot in the facility.

  • Higher installation cost compared to portable types.

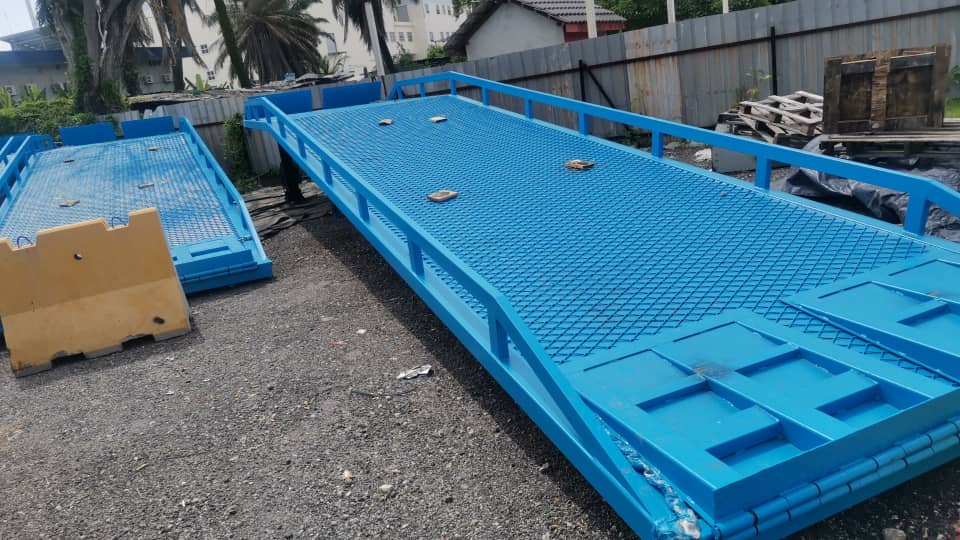

2. Mobile Container Ramp

Description

A mobile container ramp (like the one in your image) is a portable loading solution equipped with wheels or casters, allowing it to be moved to different locations. It is designed for sites that handle containers in various positions rather than at a fixed dock. The ramp usually comes with forklift pockets for easy repositioning and adjustable height mechanisms to match container floors.

Key Features:

  • Portable Design: Can be moved with a forklift or towed to different spots.

  • Adjustable Height: Hydraulic or mechanical systems adjust the ramp’s height to match various container or trailer levels.

  • Heavy-Duty Build: Supports large forklifts and heavy pallets.

  • Safety Rails & Chains: Side guards and locking chains prevent accidents during loading.

Advantages:

  • Flexible Use: Can serve multiple loading areas across the facility.

  • Ideal for outdoor operations: Works even without a permanent loading dock.

  • Time-saving: Brings the ramp directly to the container instead of moving containers to a fixed dock.

  • Cost-effective for multiple locations: One mobile ramp can replace several fixed ramps.

Limitations:

  • Requires space to maneuver: Forklift operators need room to position the ramp.

  • Slightly lower stability compared to fixed ramps (but still very safe if used properly).

  • Regular maintenance: Hydraulic systems and wheels require servicing.


3. Differences Between Floor-Type and Mobile Container Ramps

Feature / Aspect Floor-Type Container Ramp Mobile Container Ramp
Mobility Fixed in one position Portable and movable
Installation Requires permanent installation No permanent installation required
Flexibility Serves one location only Can be used in multiple locations
Load Capacity Often higher load ratings Slightly lower but still heavy-duty
Setup Time Always ready for use Requires positioning before use
Maintenance Low maintenance Higher maintenance (hydraulics, wheels)
Cost Efficiency Best for high-volume single-location use Best for multi-location or outdoor operations
Space Requirement Requires dedicated space Can be stored away when not in use
